X5 Wired Warehouse Doorbell Kit – Heavy-Duty Wired Doorbell System for Warehouses, Shops, and Commercial Spaces
SKU: MB X5 WWDC

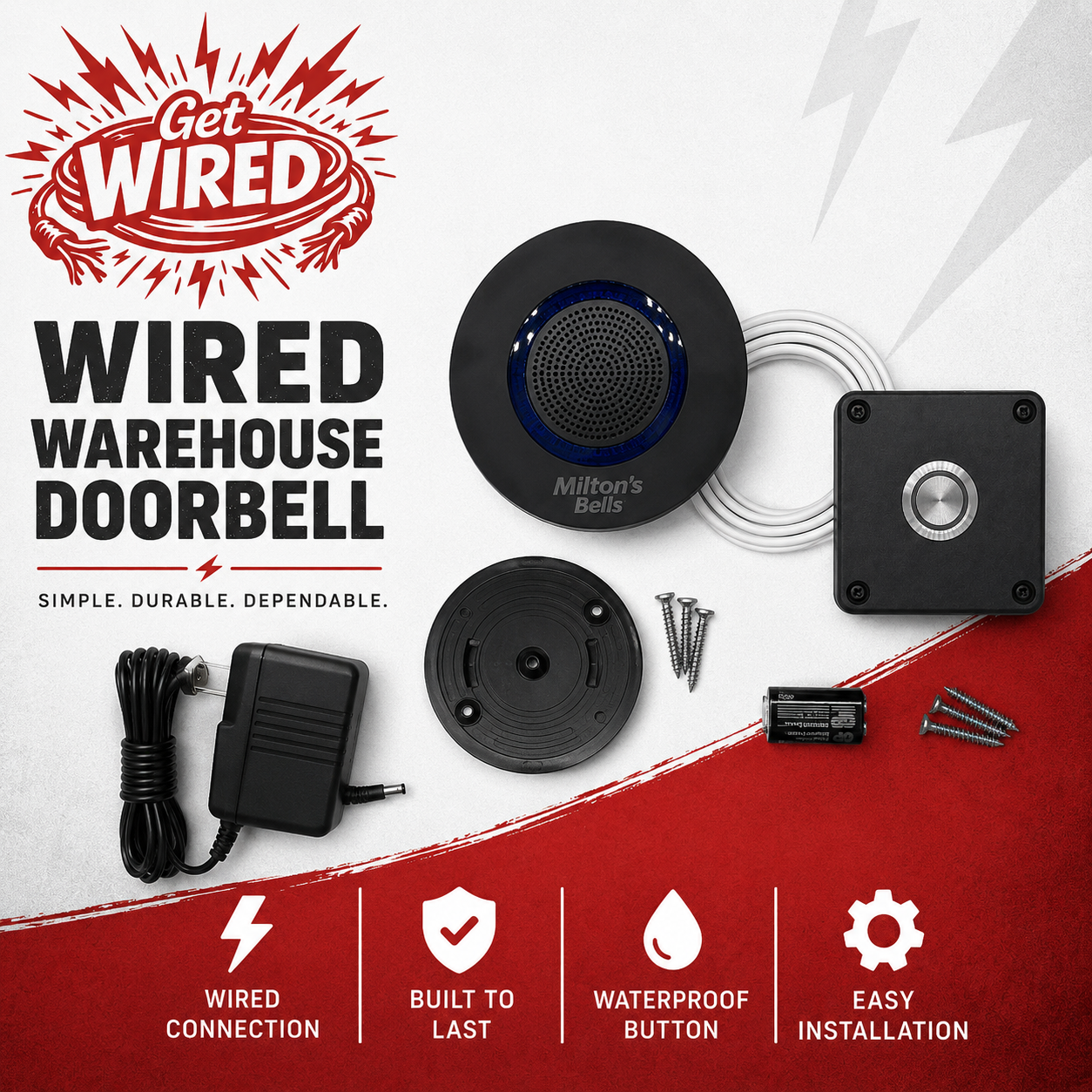

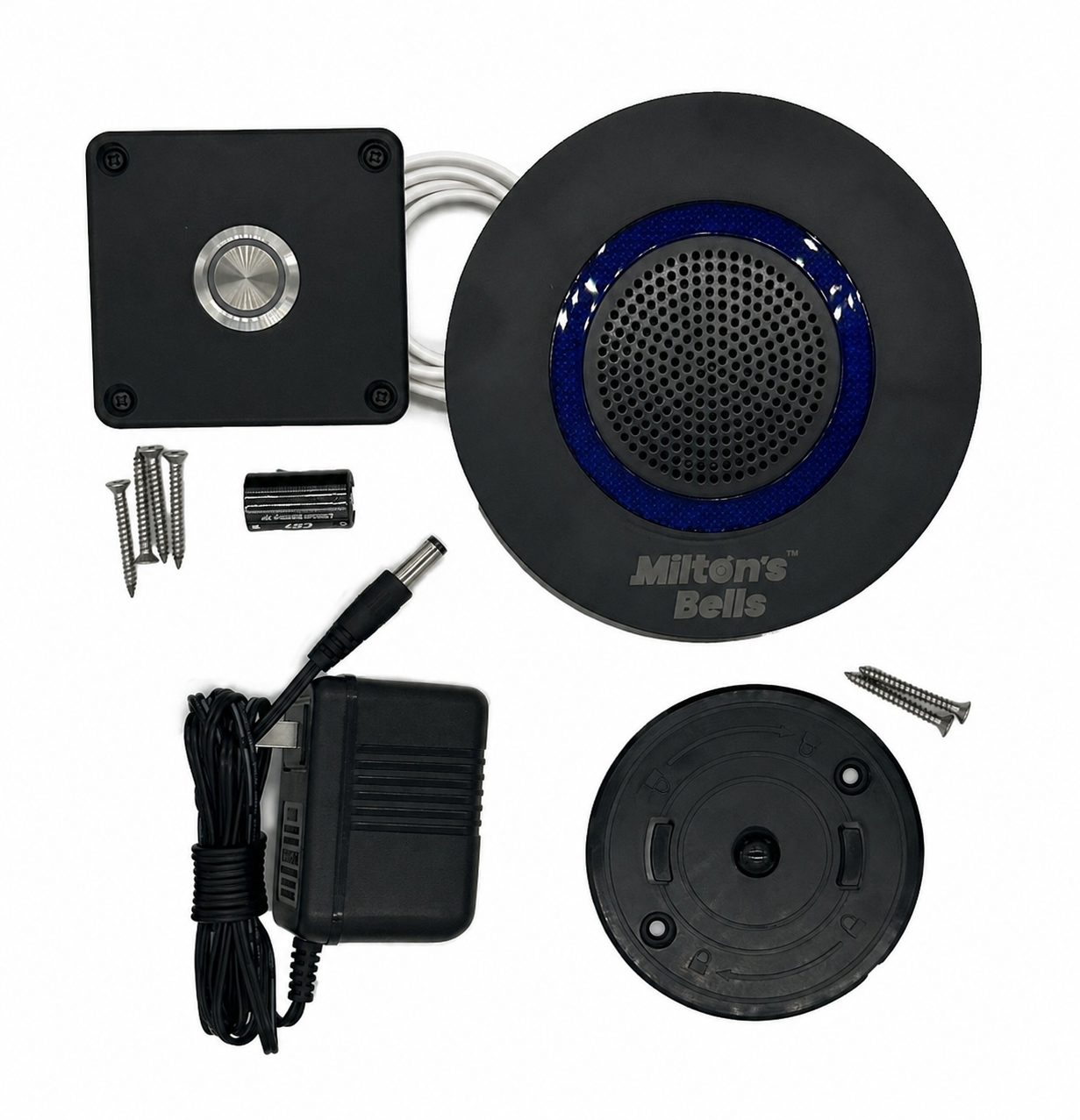

Introducing the X5 Wired Warehouse Doorbell Kit, a heavy-duty doorbell system designed for warehouses, shops, loading docks, commercial buildings, and other demanding work environments. This kit includes a rugged wired warehouse doorbell button that connects directly to the X5 chime receiver using low-voltage wire.
Built for reliability and everyday use, the X5 Wired Warehouse Doorbell Kit helps make sure you never miss a visitor, delivery, driver, or customer at an entry door, dock door, service counter, gate, or shop entrance.
Key Features of the X5 Wired Warehouse Doorbell Kit
Heavy-Duty Wired Doorbell Button
This kit includes the X5 Heavy-Duty Wired Button Transmitter, designed for tough warehouse and commercial environments. The button is a normally open momentary contact button that connects to the X5 chime using low-voltage wiring.
Because this is a wired button, it does not require a battery at the button location and is ideal for permanent installations where a direct wired connection is preferred.
Built for Harsh Conditions
The included wired button is rugged, weather-resistant, and built for outdoor or demanding indoor installations. It is a strong choice for warehouse docks, shop entrances, commercial doors, gates, service areas, and other locations exposed to daily use or changing weather conditions.
Connects Directly to the X5 Chime Receiver
The wired button connects directly to the X5 chime receiver with low-voltage wire. This makes the system a dependable option for locations where you want a hardwired button connection instead of relying only on a wireless button.
One Wired Button per X5 Chime
Each X5 chime receiver can support one wired button connection. This makes the wired kit ideal for a main entrance, dock door, shop door, or other primary access point.
Mix Wired and Wireless Buttons
The X5 system also allows you to add wireless buttons in addition to the wired button. You can use one wired button with the X5 chime and still expand the system with up to 16 additional wireless buttons, giving you flexible coverage for multiple doors, gates, or zones.
Custom Chime Sounds
Choose from 16 different chime sounds on the X5 receiver. This allows you to customize the alert sound and, when using multiple wireless transmitters, assign different sounds to different doors or access points so you know exactly where attention is needed.
Dual 12V DC Outputs for Accessories
The X5 receiver includes two 12V DC outputs for connecting low-voltage accessories such as a strobe light, siren, or Milton’s Bells Original Bell.
These accessory outputs allow the system to provide both audible and visual alerts, which is especially useful in loud warehouses, shops, workshops, loading docks, and commercial environments where a standard doorbell chime may not be enough.
Low-Voltage Accessory Flexibility
Compatible low-voltage accessories can be connected to the X5 receiver to expand the alert system. Add a strobe light for visual alerts, a loud-ringing Original Bell for a classic sound, or a siren for louder notification in noisy work areas.
For larger spaces, accessory wiring can be extended using low-voltage wire so alerts can be placed where they are most useful.
Customizable Sound Options for Your Doorbell Chime
16 Chime Sounds
The X5 chime receiver includes 16 selectable sounds, allowing you to choose the alert tone that works best for your location.
Seasonal Sounds
The X5 also includes seasonal chime sounds, including Halloween and Christmas tones, for businesses that want a more festive alert option during the holidays.
Adjustable Alert Options
The X5 chime provides a clear indoor alert. For louder or more visible notifications, connect compatible low-voltage accessories such as a strobe light, Original Bell, or siren.
Great for Warehouses and Commercial Spaces
The X5 Wired Warehouse Doorbell Kit is ideal for:
Expandable X5 System
The X5 Wired Warehouse Doorbell Kit gives you a strong wired starting point while still allowing future expansion. Use the wired button for your main door, then add wireless X5 buttons as needed for other doors, docks, gates, or work areas.
Please note: the X5 product line uses its own dedicated radio signal for X5 wireless accessories and is not compatible with older Milton’s Bells electronic signaling kits.
Reliable Door Alerts for Demanding Workplaces
Designed for durability, flexibility, and everyday performance, the X5 Wired Warehouse Doorbell Kit is a dependable solution for businesses that need a hardwired doorbell button with the option to add louder alerts, visual signals, and additional wireless access points.
Whether you are covering a warehouse door, shop entrance, loading dock, or commercial workspace, the X5 Wired Warehouse Doorbell Kit helps keep your team connected and aware when someone needs attention.
